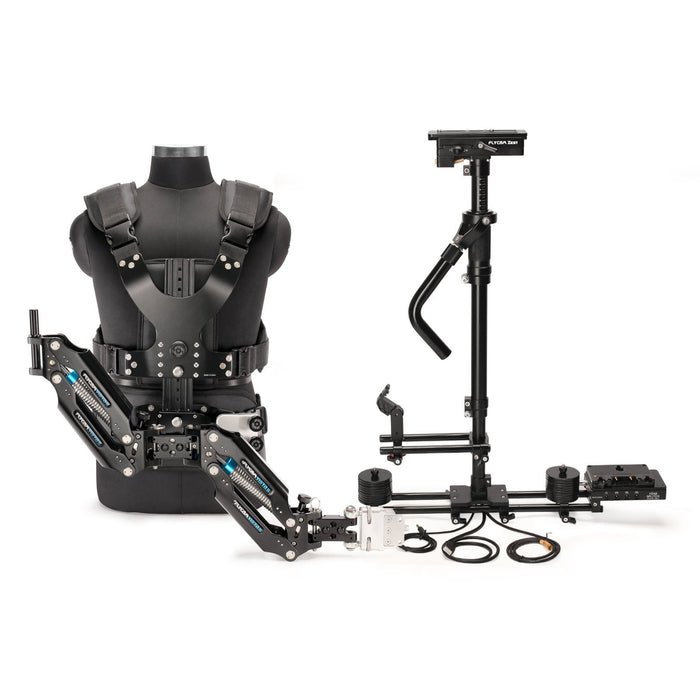

01.
MOST ADAPTABLE STABILIZER SYSTEM
Professional Handheld Stabilizer quickly adapts industry-standard cameras & accessories.
Designed For HD Broadcast, Feature Film & All Demanding Camera Stabilization Needs.
It's a strong yet lightweight gear that will successfully operate for years to come.
High-quality material construction makes it highly compatible with camera setups ranging within 5-15kg/11-33lb.
The Evolution Continues
Guarantees Perfect Workflow in a Future-Proof & Modular Design!
02.

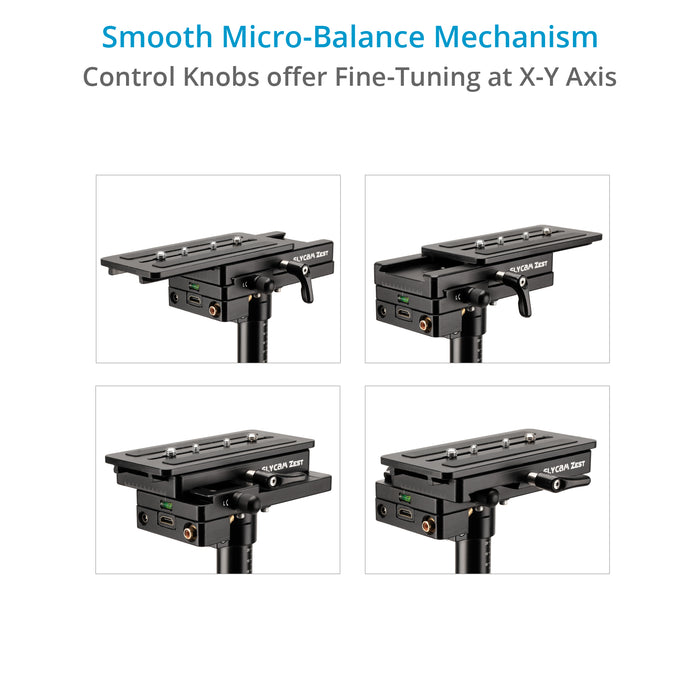

EASY BALANCING WITH MICRO-BALANCE MECHANISM

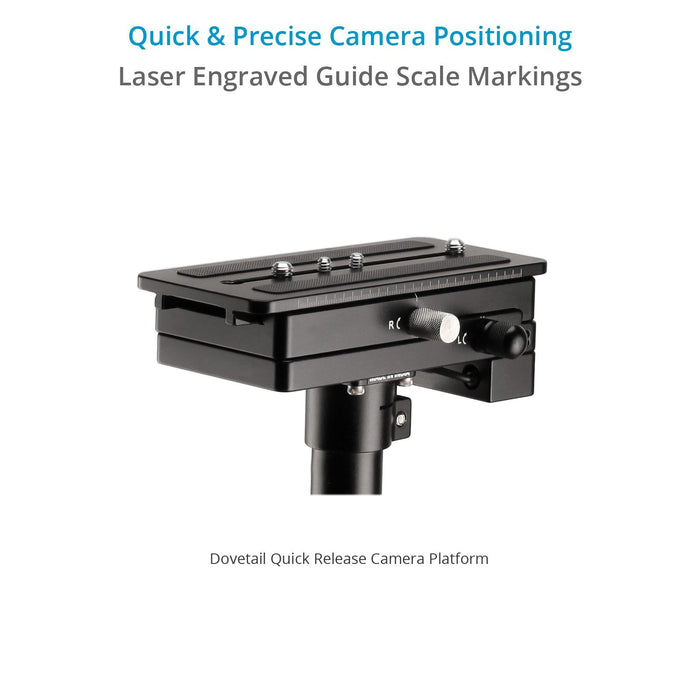

The camera platform with a micro-balance system helps to adjust the horizontal balance precisely & quickly. The Knurled knobs allow front-to-back and side-to-side adjustments. It has two bubble levellers for easy levelling.

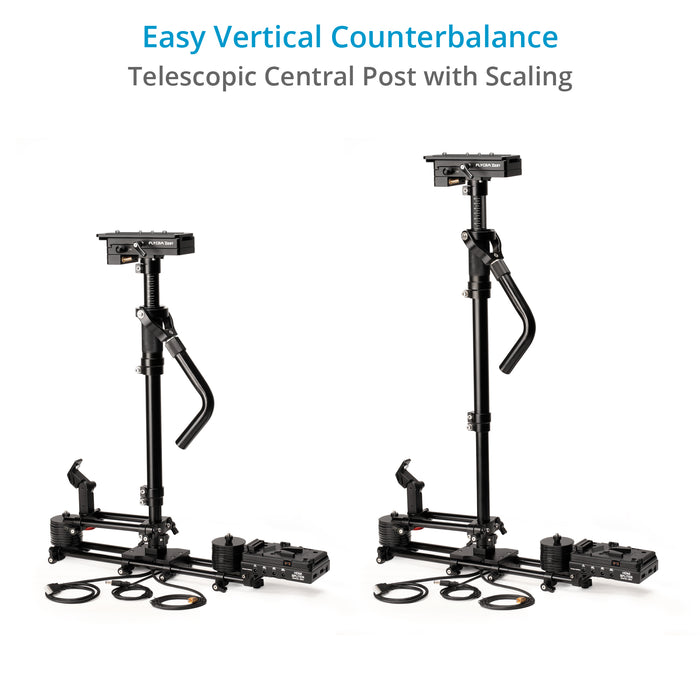

Telescopic center post with laser engraved guide scale markings offer quick & precise adjustments and helps in vertical balancing.

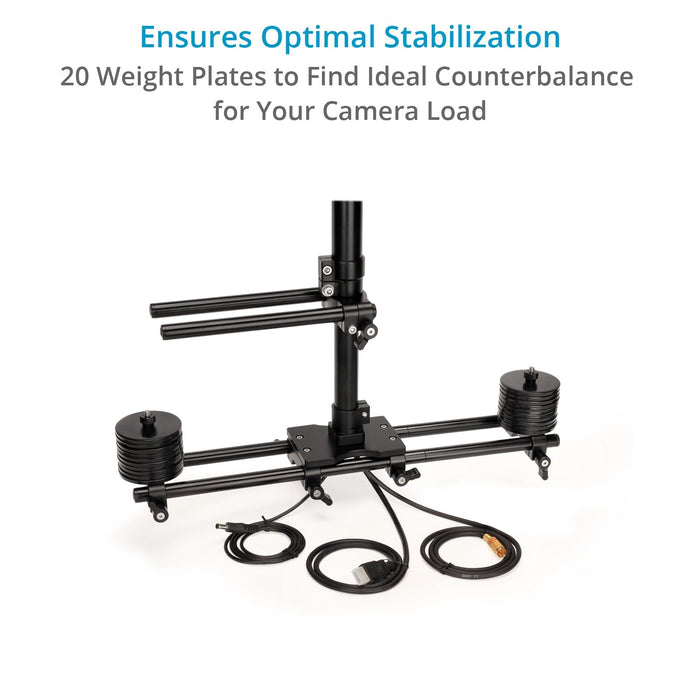

The Adjustable Base Platform with weight discs allows you to achieve perfect dynamic balance.
03.

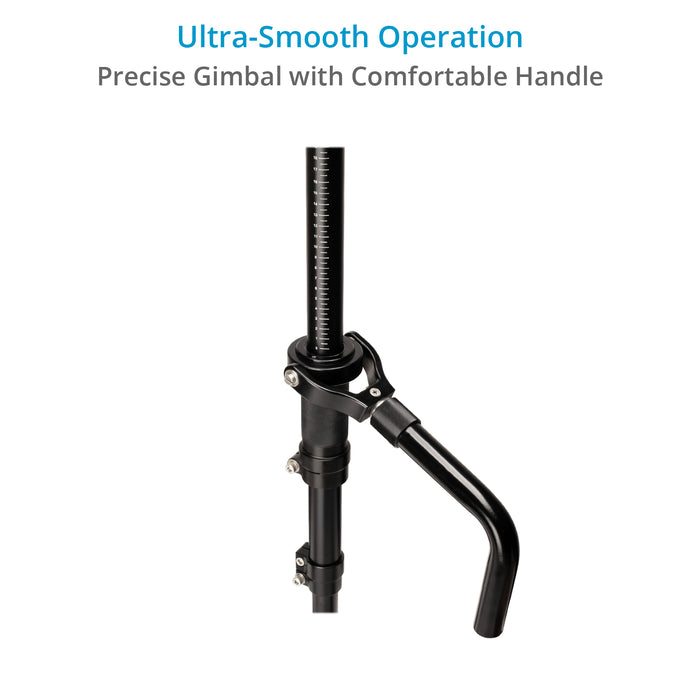

PRECISE GIMBAL WITH COMFORTABLE HANDLE
Precisely Balanced 3-axis gimbal with ball bearings allows ultra-smooth operation.
Position-adjustable knurled grip allows easy and secure low mode operation.
The New Designed Handle ensures better holding and swiveling, resulting in high standard workflow efficiency.
04.
MONITOR MOUNTING
You can easily attach the monitor mount on either 200mm or 450mm rods, as your need requires. The 200mm rod system has height adjustment capability, so you can position it wherever you need on the central post.
The unique pivot mechanism of the monitor clamp enables 360° rotation and angle adjustment for more convenience.
05.
HDMI SPLITTER
HDMI Splitter with battery plate features multiple output ports. It supplies power to LCD monitor or other accessories.
The Splitter uses high-class electronic components and easily fits 15mm rods.
06.

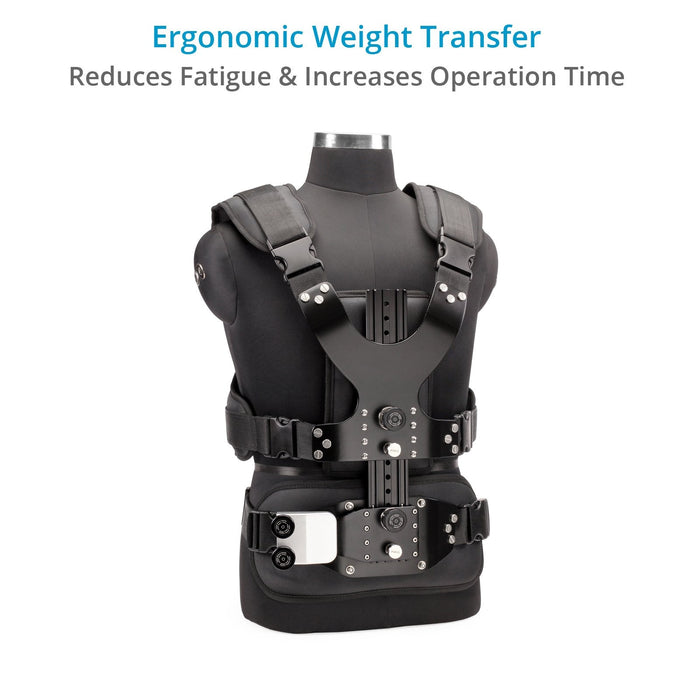

EXPERIENCE RELIEF WITH ERGONOMIC VISTA II VEST
Foam Padded Vest with highly breathable material provides excellent comfort, perfect fit and unrestricted movements.
Easy height adjustment & Velcro straps enable a comfortable fit for all body types.
A unique and proprietary Arm-to-Vest Connector allows the Support Arm's angle to be adjusted relative to the Support Vest.
Push-fit buckles allow you to remove the vest during short breaks quickly.
07.

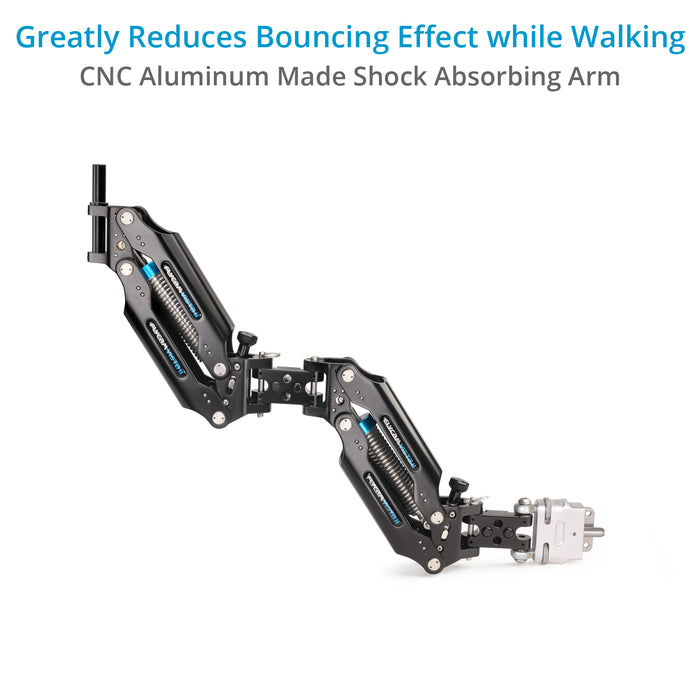

NATURALLY SMOOTH SHOTS WITH VISTA II ARM
The lightweight, dynamic Vista II Arm is designed to carry payloads up to 15kg/33lb and optimize performance throughout its lifting range.
Dual Springs enable quick, precise and smooth operation. It is possible to adjust the angle between the arm and the operator's body freely.
Spring Tension Adjustment Knob easily adjusts the tension of the spring depending upon the weight of the setup.
08.
USER-FRIENDLY DESIGN FOR EASY OPERATION
Flycam Zest Pro lets you enjoy the freedom of handheld shooting. It allows you to shoot even while going to extremes like running up and down stairs or travelling over rugged terrain.
Simple design makes it highly convenient and easy to use. It comes in a foam padded bag packing to easily carry around.
IN-ACTION VIDEOS
SPECIFICATIONS
ZEST PRO STABILIZER
Construction
High-grade CNC Aluminum
Load Capacity
5-15 kg / 11-33 lb
Head Dimensions
X, Y Axis: 8 x 17cm with Lever
Camera Mounting
¼”-20 & 3/8”-16 Screws
Central Post
Main Post Diameter: Ø30mm
Telescopic Post Diameter: Ø25 mm
Height Range: 62-100 cm / 24-39 inches
Counter Weights
Number of Counterweight Plates: 20pcs
Total Weight of 20 Plates: 2.5 kg / 5.5 lb
Weight of Each Plate: 0.125 kg / 0.27 lb
Base Platform
Rods Diameter: 15mm
Rod Lengths: 200mm & 450mm
HDMI Splitter
Output Ports: 1 x 15V, 1 x 12V, 1 x 7.2V and 1 x 5V
Product Weight (without Packing)
7.36 kg / 16.2 lb
Product Weight (with Packing)
9.94 kg / 21.91 lb
VISTA-II ARM
Construction
High-grade CNC machined Aluminum
Weighing Capacity
up to 15 kg / 33 lb
Arm Design
Dual Section Arm
Arm Maximun Length
21 inch / 53.3 cm
Spring Payload
Blue 2 - 6 kg / 4.4 - 13 lb
Red: 6 - 15 kg / 13 - 33 lb
Weight (without Packing)
4 kg / 8.8 lb
VISTA-II VEST
Construction
CNC Aluminum & Synthetic Breathable Fabric
Chest & Waist Size
Chest Size: 38 - 52 inches
Waist Size: 28 - 60 inches
Weight (without Packing)
2.87 kg / 6.3 lb
IN THE BOX
USER MANUAL
VSTA-ZPRO-01
Flycam Zest Pro Telescopic center post
Battery Plate: Gold Mount
Weight Plates: 20pcs
Monitor Mount
2 x 200mm Inbuilt Monitor rods
Weight Rods: 2 x 300mm Male Rods
2 x 150mm Female Rods
HDMI/SDI/ DC Power Cables (In-built)
Extra Cables: DC Power
HDMI male to male
RC to RC male
RC male to BNC male cable
2 x RC Female to BNC male Connector
Vista II Camera Stabilizer Arm
Vista DV Camera Stabilizer Vest

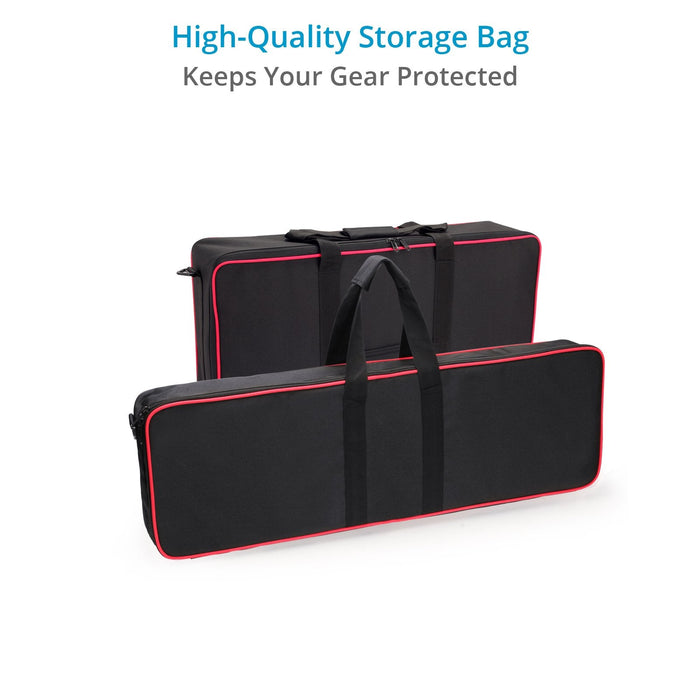

Storage Bags
VSTA-ZPRO-02
Flycam Zest Pro Telescopic center post
Battery Plate: V-Mount
Weight Plates: 20pcs
Monitor Mount
2 x 200mm Inbuilt Monitor rods
Weight Rods: 2 x 300mm Male Rods
2 x 150mm Female Rods
HDMI/SDI/ DC Power Cables (In-built)
Extra Cables: DC Power
HDMI male to male
RC to RC male
RC male to BNC male cable
2 x RC Female to BNC male Connector
Vista II Camera Stabilizer Arm
Vista DV Camera Stabilizer Vest
Storage Bags
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Q&A
Ask a Question-
Is the Adapter bushings of Flycam Vista-II Stabilizer Arm compatible with the Tilta Float?
No, the Adapter bushings of Flycam Vista-II Stabilizer Arm will not be compatible, because the adapter size of tilta float is around 12-13 mm and the Size of the mounting post of the Vista-II Stabilizer Arm is 16mm
-
Does the HDMI connections from the top sled to the bottom sled support 4K or is it only 1080 HD?
The Proaim HDMI splitter box is compatible with 4K@30hz , so please give input to this splitter from camera through hdmi cable and can take 4K output video from splitter.
-
Hi, can I use this item with a rig that wheights less than 5kg? I own a Canon c70 ?
Yes, you can mount Canon c70 camera on the Flycam Zest Pro Electronic Video Camera Stabilizer with Vista-II Arm Vest.
