Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

Wave-5P 32ft Jib with W5-STD Stand, Gold Pan Tilt Head, D-37 Tripod Dolly

Sold out
€2.989,00 - €2.989,00
€2.989,00
€2.989,00 - €2.989,00
€2.989,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : P-W5P-FLT

Conquer Cinematic Brilliance

Aiming For Dramatic Angles, High-Reliability & Maximum Performance.

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

A Powerhouse

Complex shots made easy! Experience an ease of movement with this highly-functional Jib/Crane.

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

Rock-Solid Base

Jib Tripod Stand with a versatile Dolly facilitates a sturdy base & smooth mobility paired with an impressive payload.

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

Endless Dimensions

Explore your true filmmaking with swaying pans & fine tilt angles like never before.

See how the Flight Jib Works

Camera Jib Arm (Wave-5P) Specifications

Jib Arm Material

  High Grade Aluminum

Jib Arm Thickness

  3mm

Camera Jib Crane Length

  32feet

Jib Pan Lock

  No

Jib Tilt Lock

  No

Jib each Arm length

  4feet

Finish

  Black Powder Coated

Payload capacity

  21kg / 46.3lb

Jib Arm Break downs to

  8 Sections of 4feet each

Dimensions

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

Product Weight (without packing)

  Case1 : 31.4kg / 69.2lb
  Case2 : 17.5kg / 38.5lb

Product Volumetric Weight (with packing)

  Case1 & case2 = 27.64kg / 60.93lb

Gold Pan-Tilt Head (PT-Gold) Specifications

Material of Construction

  High‐Grade CNC Aluminum

Load Capacity

  7.5kg / 16.5lb

Pan & Tilt

  Movement : 360°

Speed Control

  Minimum: 6° /Second
  Maximum: 51° /Second
  Covers 360° at Slowest Speed in : 2 minutes
  Covers 360° at Highest Speed in : 7 seconds

Motors

  Two high torque, coreless DC motors that rotate the Head 360°   (Pan/Tilt)

Gears

  2 Small: Ø13mm (Brass)
  2 Large: Ø88mm (Aluminium)

Adjustment

  Minimum Height of Head: 18inch / 45.72cm
  Maximum Height of Head: 23inch / 58.42cm

Joystick Controller

  Axis: 2
  Connectors: 2x 4‐Pin XLR Male Connectors
  Pan/Tilt Direction: Yes
  Upgraded with: Damping Knob

AC Adapter Input

  AC 100‐240V ; Output 12V DC‐3A

Cables

  Cable Length: 15 meter (Can be extended up to 50 meter)
  Cable Connector: 4‐Pin XLR
  Battery Cable: 3 meter Long

Mounting Base

  Square with four mounting screw & nut

Dimensions

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

Product Weight (without packing)

  6.3kg / 13.8lb

Product Volumetric Weight (with packing)

  9.64kg / 21.25lb

Heavy-Duty Floor Dolly (D-37)

Construction

  Aluminum

Wheel Diameter

  6inch

Wheel Thickness

  2inch

Locking Wheels

  Yes

Height From Ground

  9inch

Wheel Lock

  Yes

Dimensions

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

Product Weight (without packing)

  16.5kg / 36.3lb

Product Volumetric Weight (with packing)

  23.1kg / 50.9lb

Heavy-Duty Tripod Stand (W5-STD)

Construction

  Steel

Weight of Tripod

  11kg

Dia of Tripod leg

  40mm

Length of Tripod

  4inch

Dimensions

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

Product Weight (without packing)

  11kg / 24lb

Product Volumetric Weight (with packing)

  15.4kg / 33.9lb

Joystick Controller

Joystick Controller

  3‐Axis

Connectors

  1 x 4‐Pin XLR male connectors
  6 Pin XLR

Pan Direction

  Yes

Tilt Direction

  Yes

Product Weight (without packing)

  10kg / 22lb

Product Gross Weight (with packing)

  14.91kg / 32.87lb

In the Box

32ft Wave 5 Jib crane
Gold Pan-Tilt head (PT-GOLD)
Tripod Stand (W5-STD)
D-37 Floor Dolly (D-37)
Free LCD Mounting Provision
Free Tools and Tool Pouch/Wrap
Storage Cases

User Manual

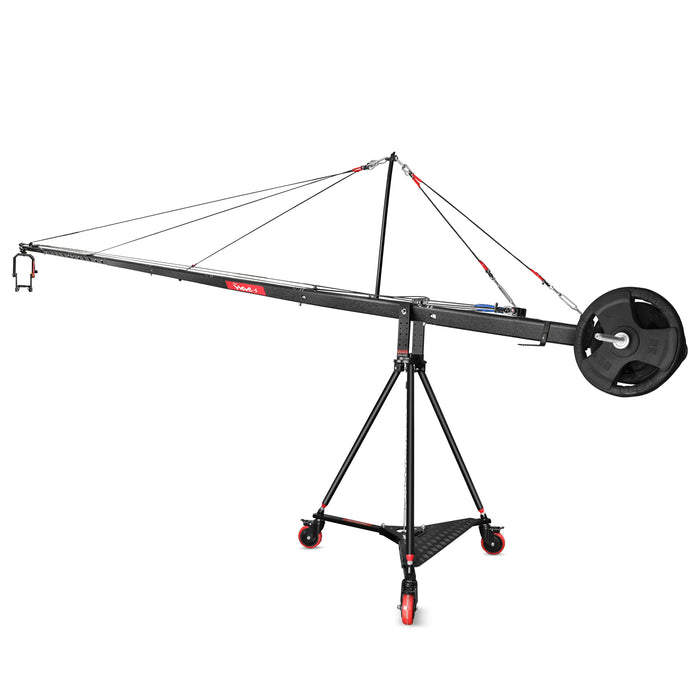

  Proaim 32ft Flight Camera Jib Crane Package

01.

Productive Filming Solution

Leave no angle unexplored with the Proaim 32ft Flight Camera Crane Full-Fledged Package- an ultimate solution for your diverse shooting needs.
The package includes a rugged tripod stand for optimal support, a durable pan-tilt head to capture every creative angle, and a floor dolly to give a rock-solid platform for dynamic moving shots.
It supports 3-Axis Camera Gimbals & Video Film & Broadcasting Cameras weighing up to 21 kg / 46.3lb, promising high reliability with maximum performance.

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units
Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

02.

Expertly Crafted High-Performance Jib

Our modular Jib is engineered for optimum reliability and performance.
It features a central Fork that offers smooth pan-tilt movements while absorbing the operator's undesired vibration or movement.
Its color-coded suspension cables let you assemble the entire setup quickly.
An LCD mounting option enables the operator to view better.
Furthermore, we have included Hi-tensile weight bars to add counterweights, offering perfect balance for steady and effective shooting.

03.

Smartly Designed Arm Sections

The triangular-shaped jib arm sections are divided into eight 4' sections, and each section fits smoothly and securely into another one.
It has a dual lock mechanism that strengthens the Crane System and makes it more durable.
Also, Arm length is adjustable, ranging from 16ft to 32ft, perfect for any shooting scenario.
Holes have been added to the tube section to save weight and reduce wind pressure without compromising the strength of the Jib.

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units
Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

04.

Gold Pan-Tilt Head

We have included a versatile pan tilt head to give you multiple cinematic dimensions ensuring perfect shots from exact angles.
Designed to explore every new angle, the durable pan-tilt head comes with a joystick controller that facilitates control over the Pan, Tilt, and Dampening right at your fingertips with its independent knobs.
The two independent Speed controller knobs let you control and precisely adjust the speed, suiting the requirement of the shot.
Two independent Damping control knobs prevent the head from stopping abruptly with a jerk, allowing for smooth endings.
And with two separate direction control knobs, you can quickly reverse the direction of panning, & tilting as & when required.

05.

Stable Base with Effortless Mobility

Furthermore, we've paired a heavy-duty jib Stand and a floor dolly to give your 32ft crane a rock-solid platform.
The heavy-duty jib stand is super sturdy and stands 42" with unbeatable strength, making it an ideal support for your 32ft jib/crane.
The heavy-duty dolly offers exceptional maneuverability with an impressive payload to carry & move the heaviest of loads with stability even in rough terrain.
Additionally, it features an outstanding framework with rubber wheels, built-in locks, and bearings that offer smooth moving shots while keeping your gear secure.

Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units
Proaim 32ft Flight Camera Jib/Crane Package for Filmmakers & Production Units

06.

Easy Setup and Transit

A ten-pocket tool pouch is included for quick access to tools like Allen keys and wrenches, making tool storage sleek and effortless.

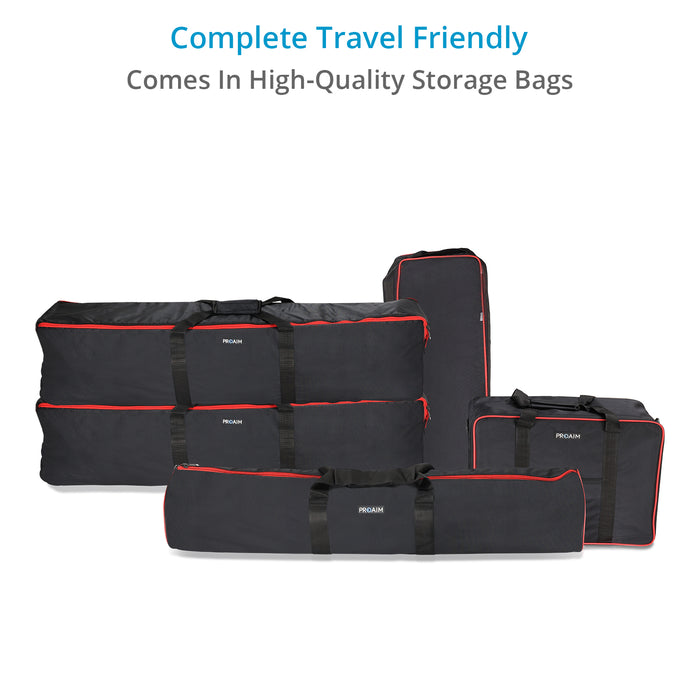

The Crane Package comes in custom-made storage cases to securely store and transport your gear.
